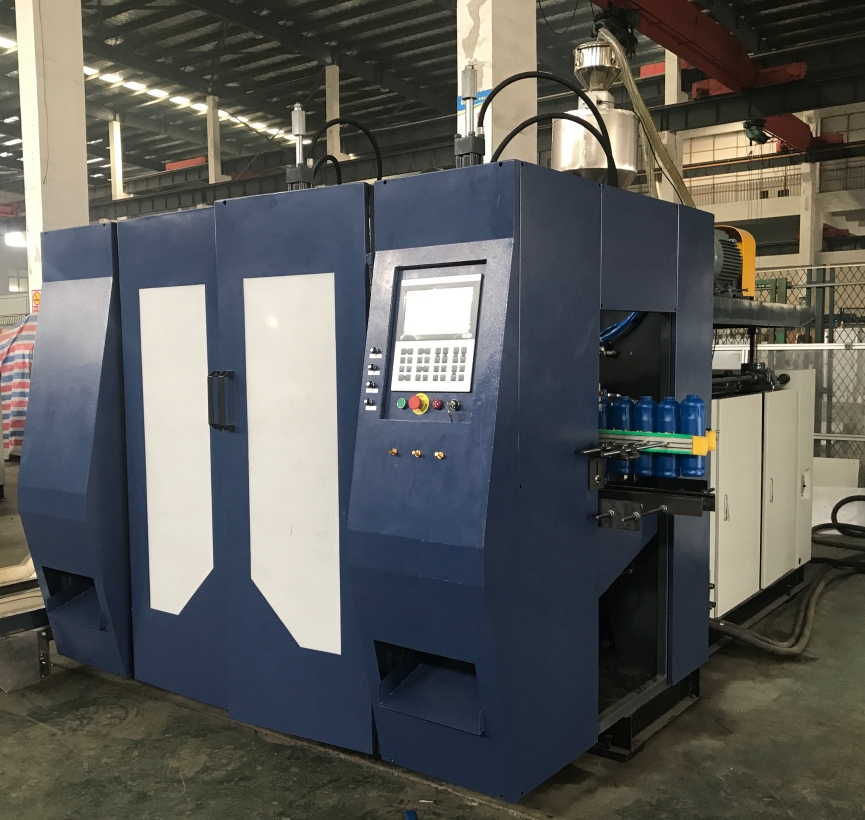

100ml to 2L HDPE PLASTIC EXTRUSION BLOW MOLDING MACHINE (EBM)

Our 100ml to 2L plastic bottle blow molding machines are specialized equipment designed to meet the production needs of small-sized containers. They are suitable for small volume packaging in the beverage, daily chemical, pharmaceutical, and industrial product sectors. Combining high-precision control with efficient production capabilities, these machines can consistently process a variety of plastic materials, achieving high-quality blow molding of bottles ranging in size from 100ml to 2L

Specifications and Features
Capacity Coverage:
Small Containers (100ml to 2L): Commonly used for packaging juice, drinking water, liquid dairy products, as well as household and industrial liquids such as detergents, cleaning fluids, sauces, and car care products.

Applicable Models: EJB55S, EJB55D, EJB65S

Material Compatibility: Compatible with a variety of plastics, including HDPE (chemical resistance, high rigidity), PP (high-temperature resistance, suitable for hot filling), and PVC (high-impact, industrial rigid bottles), meeting the regulatory and functional requirements of food, chemical, and pharmaceutical packaging. Multi-layer co-extruded EVOH high-barrier bottles are also available, suitable for applications such as chemicals and pesticides.

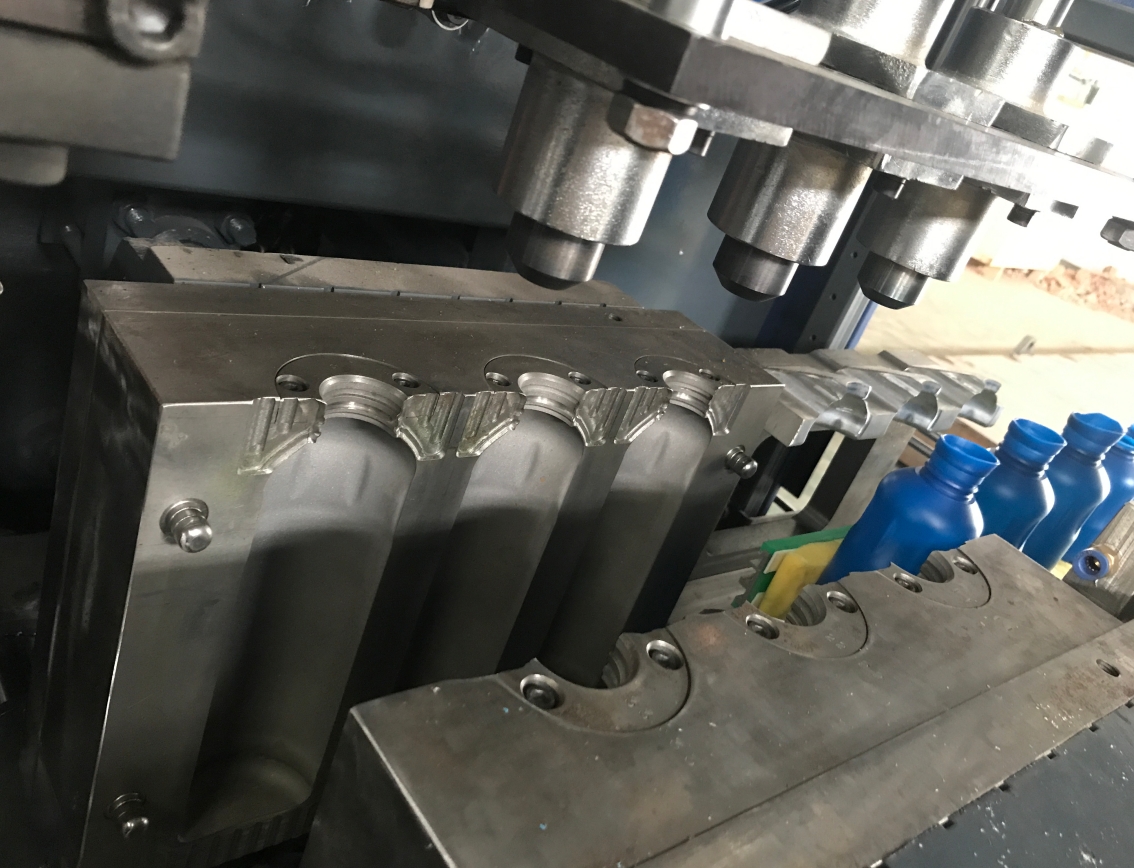

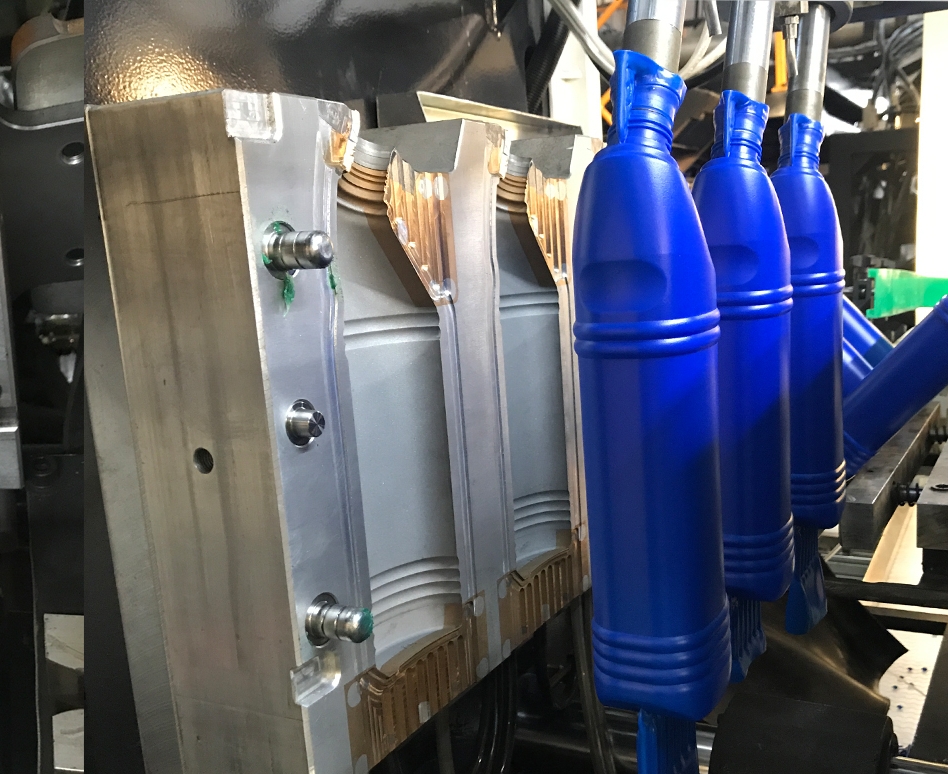

Customization and Functional Design: Molds can be customized to meet specific needs, supporting custom-shaped bottle bodies, handle structures, anti-counterfeit bottle necks, and labeling areas. Surface finishes such as glossy, frosted, and embossed finishes are available to enhance brand recognition and packaging quality.
Automation and Intelligent Features:

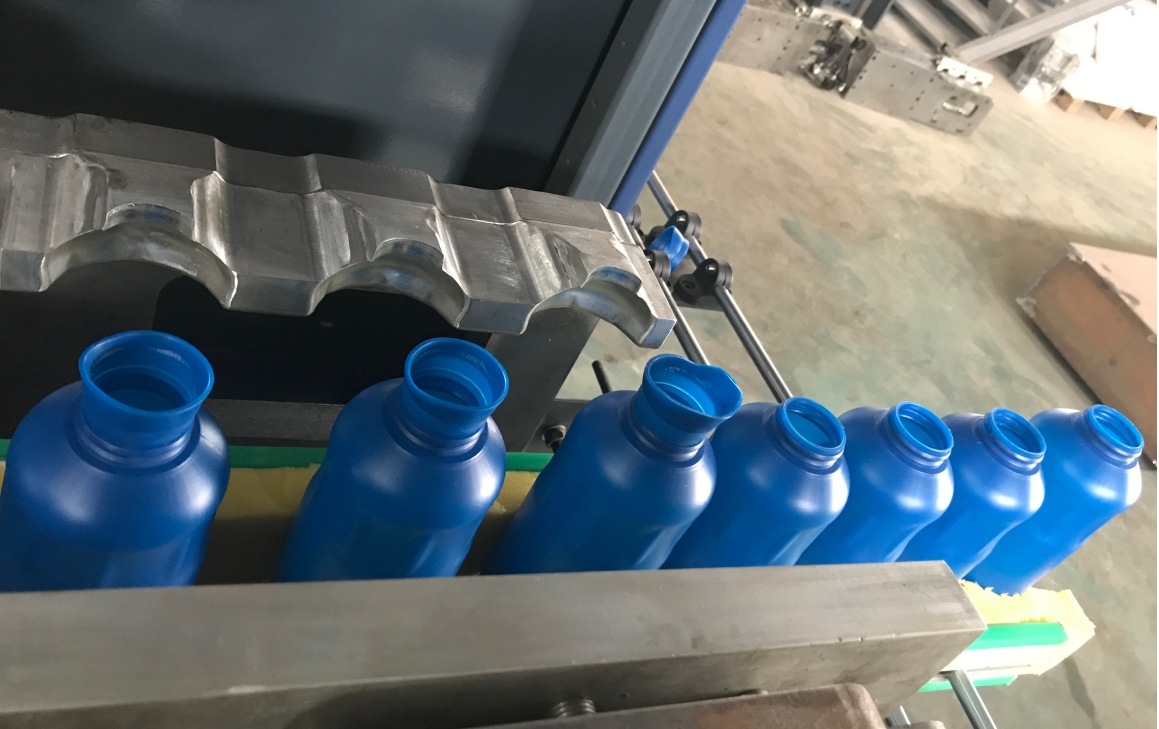

Integrated modules include automatic loading, in-line inspection, and robotic bottle handling, enabling fully automated production.
Real-time production monitoring and fault diagnosis enhance controllability and maintenance efficiency.
This series of blow molding machines is dedicated to providing customers with reliable solutions for large-volume plastic bottle production, balancing flexibility, efficiency, and quality, meeting the packaging manufacturing needs of diverse markets.

MACHINE PARAMETER

Continuous extrusion blow molding machine
Parameters	EJB50S	EJB55D	EJB65S
Diameter	50mm	55mm	65mm
Screw L/D ratio	24	24	24
Screw RPM（50HZ)	10-80 r/min	10-80 r/min	10-80 r/min
Extrusion capacity per hour(PE)	50kg/h	55kg/h	70kg/h
Number of heaters	3	3	3
Opening stoke	370mm	370mm	420mm
Platen size	280mm x 390mm	280mm x 390mm	320mm x 410mm
Clamping stoke	130-400mm	130-400mm	150-500mm
Clamping force	37KN	37KN	68KN
Dry cycle time	4S	6S	5S
Cooling water pressure	0.2-0.3MPa	0.2-0.3MPa	0.2-0.3MPa
Cooling water consumption	35L/min	35L/min	50L/min
Air pressure	0.6MPa	0.6MPa	0.6MPa
COmpressed air consumption	0.4m³/min	0.4m³/min	0.4m³/min
Machine dimension(L x W x H) M	2.9*1.6*2.35 M	3.32*2.0*2.4M	3.4*1.75*2.4
Machine net weight	3.4T	4T	5T

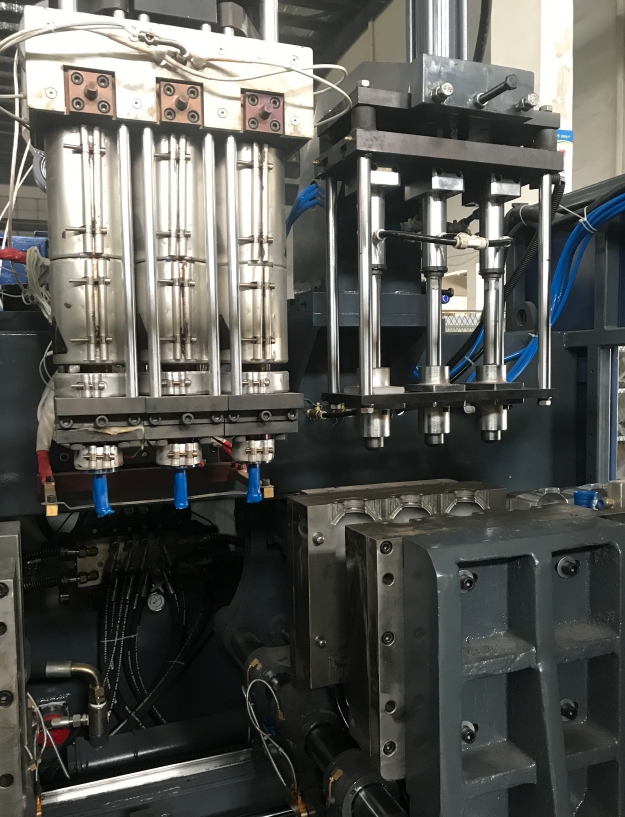

Die head series (Optional)
Center distance of double-die	130mm	130mm	160mm
Center distance of tri-die	90mm	90mm	110mm
Center distance of tetra-die	75mm	75mm	85mm
Power consumption parameter
Inverter motor	11kw	15kw	18.5kw
Extruder heating power	11kw	11.6kw	13.8kw
Power of die heating zone	1.8kw	1.8kw	3kw
Hydraulic motor	7.5kw	7.5kw	7.5kw
Maximum Electrical power rating	31.3kw	35.9kw	45.5kw
