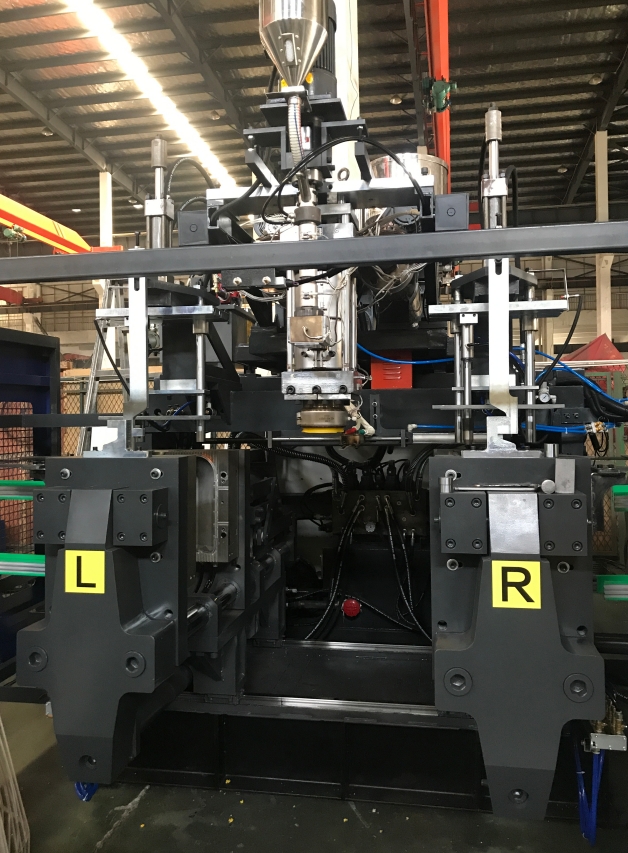

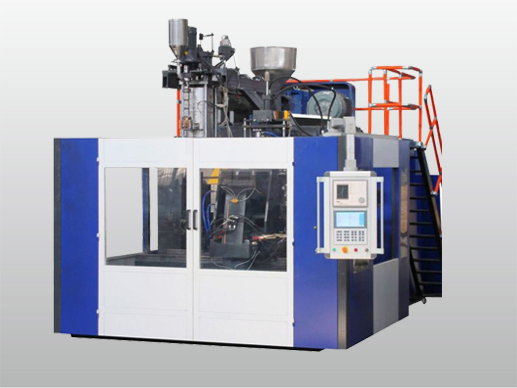

2L -10L HDPE PLASTIC EXTRUSION BLOW MOLDING MACHINE (EBM)

Our 2L-10L plastic bottle blow molding machines are specialized equipment designed to meet the production needs of medium-sized containers. They are suitable for large-volume packaging in the beverage, daily chemical, pharmaceutical, and industrial product sectors. Combining high-precision control with efficient production capabilities, these machines can consistently process a variety of plastic materials, achieving high-quality blow molding of bottles ranging in size from 2L to 10L.

Specifications and Features
Capacity Coverage:
Small Containers (2L–5L): Commonly used for packaging juice, drinking water, liquid dairy products, as well as household and industrial liquids such as detergents, cleaning fluids, sauces, and car care products.
Medium Containers (5L–10L): Suitable for packaging edible oils, industrial paints, dialysis fluids, lubricants, large-volume detergents, and other commercial or industrial packaging requiring a strong structure and a good seal.

Applicable Models: EJB65S, EJB70D, EJB80S, EJB80D.

Material Compatibility: Compatible with a variety of plastics, including HDPE (chemical resistance, high rigidity), PP (high-temperature resistance, suitable for hot filling), and PVC (high-impact, industrial rigid bottles), meeting the regulatory and functional requirements of food, chemical, and pharmaceutical packaging. Multi-layer co-extruded EVOH high-barrier bottles are also available, suitable for applications such as chemicals and pesticides.
Customization and Functional Design: Molds can be customized to meet specific needs, supporting custom-shaped bottle bodies, handle structures, anti-counterfeit bottle necks, and labeling areas. Surface finishes such as glossy, frosted, and embossed finishes are available to enhance brand recognition and packaging quality.
Automation and Intelligent Features:

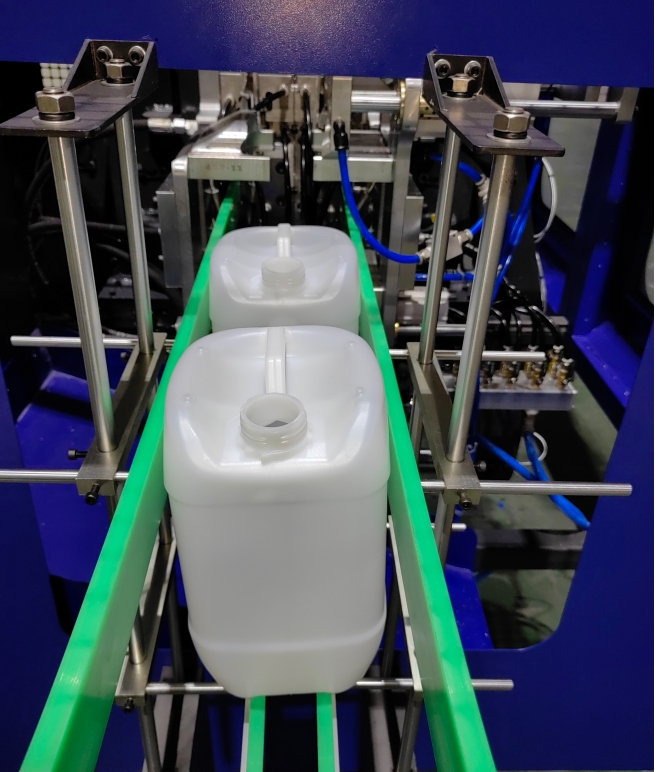

Integrated modules include automatic loading, in-line inspection, and robotic bottle handling, enabling fully automated production.
Real-time production monitoring and fault diagnosis enhance controllability and maintenance efficiency.
This series of blow molding machines is dedicated to providing customers with reliable solutions for large-volume plastic bottle production, balancing flexibility, efficiency, and quality, meeting the packaging manufacturing needs of diverse markets.

MACHINE PARAMETER

Continuous extrusion blow molding machine
Parameters	EJB70D	EJB70S	EJB80S	EJB80D
Diameter	70mm	70mm	80mm	80mm
Screw L/D ratio	24	24	24	24
Screw RPM（50HZ)	10-60 r/min	10-60 r/min	10-60 r/min	10-60 r/min
Extrusion capacity per hour(PE)	70kg/h	70kg/h	110kg/h	110kg/h
Number of heaters	3	3	4	4
Opening stoke	420mm	600mm	600mm	600mm
Platen size	320mm x 410mm	500mm x 540mm	500mm x 540mm	500mm x 540mm
Clamping stoke	150-500mm	200mm-650mm	200mm-650mm	200mm-650mm
Clamping force	68KN	110KN	110KN	110KN
Dry cycle time	7S	9S	14S	14S
Cooling water pressure	0.2-0.3MPa	0.2-0.3MPa	0.2-0.3MPa	0.2-0.3MPa
Cooling water consumption	50L/min	60L/min	60L/min	60L/min
Air pressure	0.8MPa	0.8MPa	0.8MPa	0.8MPa
COmpressed air consumption	0.4m³/min	0.8m³/min	0.8m³/min	0.8m³/min
Machine dimension(L x W x H) M	3.4*1.75*2.4	3.8*2.1*2.95	4.2*2.1*3.15	4.2*3.1*3.15
Machine net weight	5T	7T	8.5T	10.2T
Die head series (Optional)
Center distance of double-die	160mm	200mm	200mm	200mm
Center distance of tri-die	110mm	150mm	150mm	150mm
Center distance of tetra-die	85mm	100mm	100mm	100mm
Power consumption parameter
Inverter motor	22kw	22kw	30kw	30kw
Extruder heating power	14.2kw	14.2kw	16kw	16kw
Power of die heating zone	4kw	4kw	4kw	4kw
Hydraulic motor	11kw	11kw	11kw	11kw
Maximum Electrical power rating	55.2kw	55.2kw	65kw	65kw
